Main Features:
The machine adopts the integrated system combining fully servo-synchronized drive control,visual positioning isystem and digital adjustment.It ensures all operations strictly adhere to preset electronic cam curves, eliminating mechanical transmission backlash and inertia errors. As a result, the machine runs more smoothly with reduced vibration, enabling higher production speeds while maintaining precision. Additionally, by digitizing all adjustable parameters, machine setup is simplified, significantly reducing changeover time.
Suitable for the production of premium packaging boxes,such as luxury packaging,cosmetic boxes,tea boxes,shoe boxes,jewelry boxes,electronic product packaging,gift boxes and similar high-end box types.
Email:admin@amamachine.com
Whatsapp:+86 17758110836

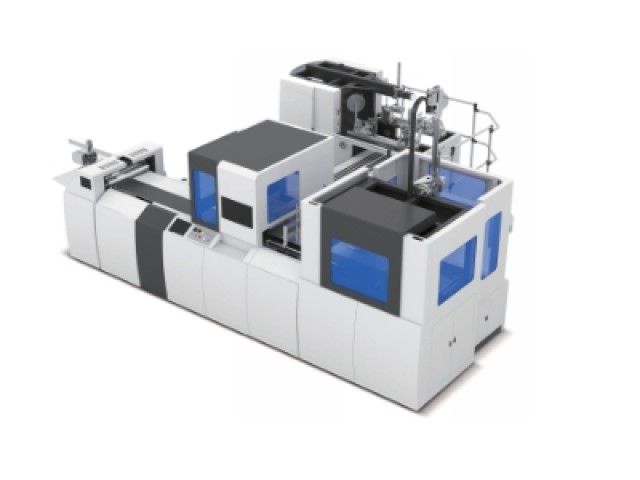

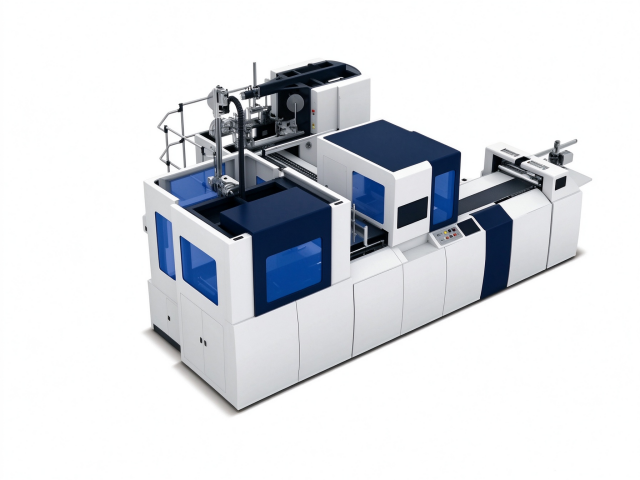

Products Display：
Basic Function：
1. Servo feeder rear suction paper feeding structure with anti-double sheet system;
Main Technical Parameters：
|
Model |
RA6040B Automatic Rigid Box Maker |
| Paper Size(L×W) | Max.850×610mm,Min.140×100mm |
|
Max.size of box(L×W) |
600×400mm |
|
Min.size of box(L×W) |
100×50mm/50×50mm |
| Box Height | 10-150mm/10-120mm |
| Paper Thickness | 100-250g/㎡ |
| Cardboard Thickness | 0.8-3mm |
| Paper-pile Height | 550mm |
| Cardboard-pile Height | 1380mm |
|
Work speed |
≦30pcs/min. |
| Heating Power | 10kw |
|
Motor Power |
20kw |
|
Air supply |
≧0.6MPA |
|
Voltage |
AC380V,50Hz,3-PH |
|
Machine Dimension (L×W×H) |
6360×5000×3260mm |
|
Net weight |
5500kgs |
