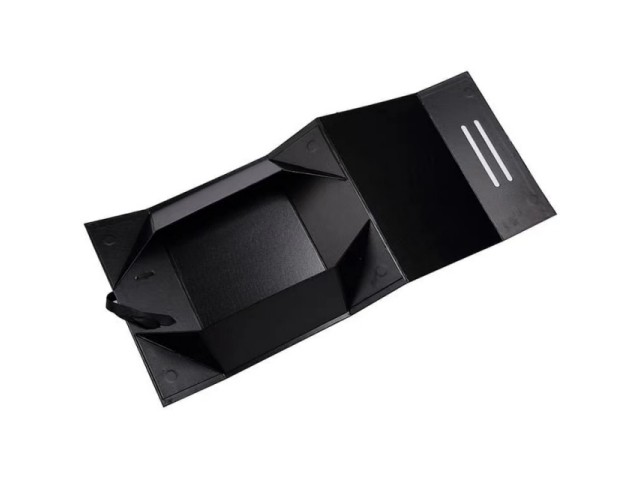

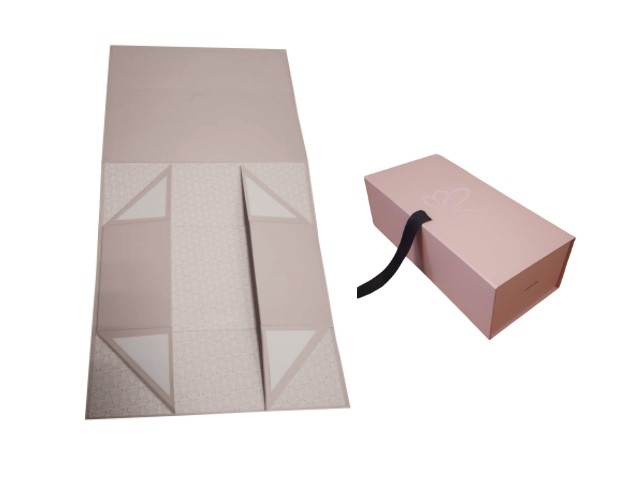

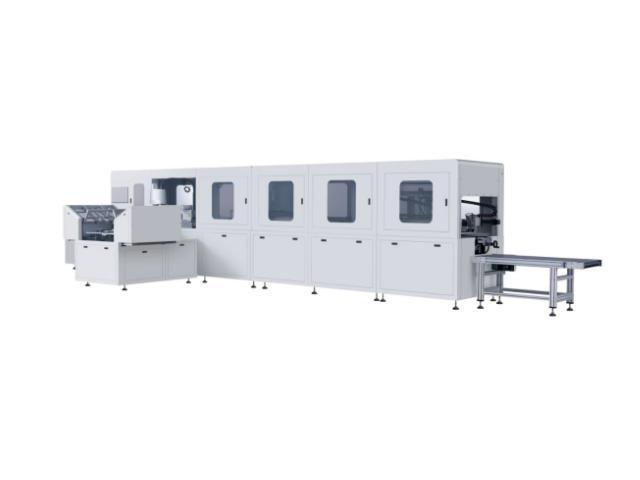

GR-1200ZA(3-link board) Automatic collapsible box assembling machine integrates automatic case feeding,automatic Visual glue-spraying system,automatic wing-assembling and automatic box flipping in line.It is ideal machine to make foldable gift-box,luxury folding box,cosmetics collapsible-box and so on.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Main Technical Parameters：
|
MODEL |
GR-1200ZA(3-Link Board) |
|
Max.size of Case |
1000mm×450mm |
|
Min.size of Case |
220mm×180mm |
|
Max.size of Wing |
700mm×150mm |
|
Min.size of Wing |
150mm×40mm |
|
Max.size of finished box |
450mm×450mm×150mm |
|
Max.size of finished box |
180mm×80mm×40mm |
|
Working Speed |
1-15pcs/min |
|
Power |
25KW |
|
Air supply |
0.7Mpa |
|
Voltage |
AC380V,50Hz,3-PH,4-LINE |
|
Machine Dimension(L×W×H) |
9000mm×3500mm×1900mm |
|
Net Weight |
2000kgs |
