Main Technical Parameters：
|
Model |

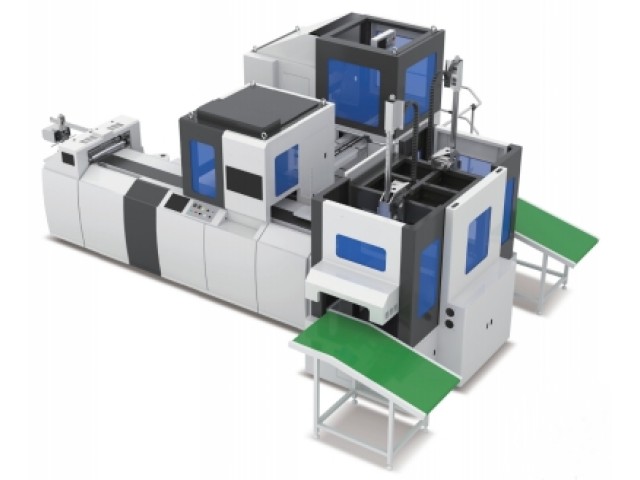

RA380B Automatic Rigid Box Maker |
| Paper Size(L×W) | Max.600×400mm,Min.130×70mm |
|
Max.size of box(L×W) |
350×250mm |
|
Min.size of box(L×W) |
50×40mm |
| Box Height | 10-100mm |
| Paper Thickness | 100-250g/㎡ |
| Cardboard Thickness | 0.8-3mm |
| Paper-pile Height | 550mm |
| Cardboard-pile Height | 1100mm |
|
Work speed |
≦50pcs/min. |
| Precision | 0.1mm-0.3mm |
|
Power |
30kw |
|
Air supply |
≧0.6MPA |
|
Voltage |
AC380V,50Hz,3-PH |
|
Machine Dimension (L×W×H) |
6300×5200×3200mm |
|
Net weight |
6000kgs |
